Used Nihon Kohden CardioLife TEC-5602 Defibrillator For Repair

Brand Name : Nihon Kohden

Model Number : TEC-5602

MOQ : One Piece

Payment Terms : T/T, Western Union,Paypal

Delivery Time : 3-5 working days

Packaging Details : Canton

Product Name : Used Nihon Kohden TEC-5602 Defibrillator For Repair

Brand : Nihon Kohden

Model NO : TEC-5602

Weight : 6.8 kg±10% (defibrillator, battery pack, external paddles, external paddle holders)

Dimensions : 311(W) × 288(H) × 242(D) mm±10%

Manual mode : For charging to a user-specified energy level by using the CHARGE/AED button

Display : 6.5-inch diagonal, color TFT-LCD

Display area : 132.48 mm × 99.36 mm

Number of pixels : 640(H) × 480(V) pixels

Power-supply voltage range : 100 V to 240 V

Contact Now

Nihon Kohden TEC-5602 Defibrillator For Repair









Features of Nihon Kohden TEC-5602 Defibrillator



  • To improve the success rate of defibrillation, the required energy must be transmitted to the patient within 20ms.

Nihon Kohden's unique ACTI biphasic wave technology can control the energy release time within 20ms, even for patients with high transthoracic impedance.



  • It can still work normally in harsh environments;

The application of special materials and components allows TEC-5602/TEC-5621/TEC-5631 to work at minus 5 degrees

The IP44 waterproof and dustproof capability ensures the normal use of TEC-5602/TEC-5621/TEC- 5631 in harsh outdoor conditions













Specification Of Nihon Kohden TEC-5602 Defibrillator For Repair





Manual mode

For charging to a user-specified energy level by using the CHARGE/AED button


Manual sync mode:

For charging to a user-specified energy level by using the CHARGE/AED button, then discharging in synchronization with the R-wave of an ECG after the SHOCK button is pressed




AED mode:

For charging up to the automatically specified energy level when defibrillation is required for the ECG. The energy level varies, depending on the sequence defined in advance


External paddles

2, 3, 5, 7, 10, 15, 20, 30, 50, 70, 100, 150, 200, or 270 J selectable


Internal paddles:

2, 3, 5, 7, 10, 15, 20, 30, or 50 J selectable


Disposal pads:

2, 3, 5, 7, 10, 15, 20, 30, 50, 70, 100, 150, 200, or 270 J selectable


Display

6.5-inch diagonal, color TFT-LCD


Display area:

132.48 mm × 99.36 mm


Number of pixels:

640(H) × 480(V) pixels


Recording sensitivity

10 mm/mV±10% or less


Frequency response

0.05 to 150 Hz (attenuation 3 dB or less) for a sinusoidal input of 2 mVp-p and 10 Hz as the reference




Recording paper speed

25 mm/s±10% or less or 50 mm/s±10% or less


Power-supply voltage range:

100 V to 240 V


Power frequency:

50 Hz or 60 Hz


Continuous loading:

150 VA or less


Intermittent loading:

300 VA or less


Battery Type

Ni-MH battery


Capacity:

2800 mAh


Weight

6.8 kg±10% (defibrillator, battery pack, external paddles, external paddle holders)


Dimensions

311(W) × 288(H) × 242(D) mm±10%

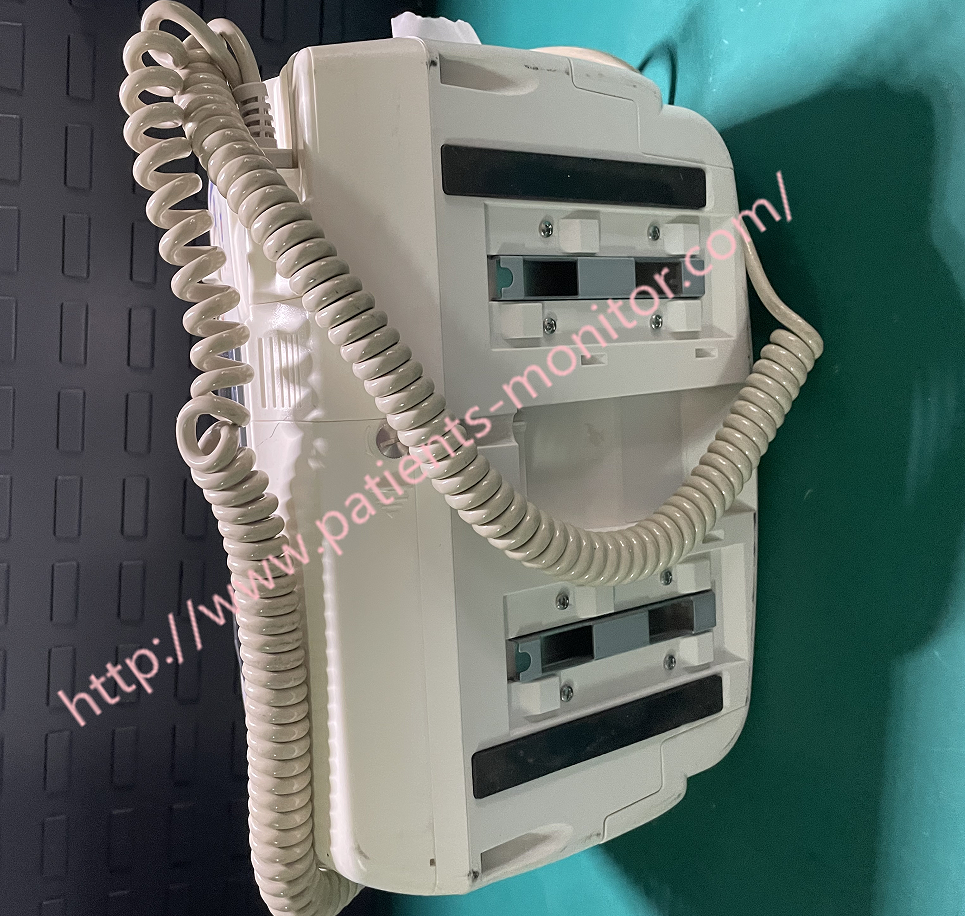

Photos of Used Nihon Kohden TEC-5602 Defibrillator For Repair



Used Nihon Kohden CardioLife TEC-5602 Defibrillator For Repair



Thank you so much for your attention .If you're intererested in Used Nihon Kohden TEC-5602 Defibrillator For Repair ,feel free to contact us .Thank you .
