EDAN F2 F3 F6 F9 TOCO Transducer Blue label MS3-31527(B) TPU REF 02.01.210259 MPN02.01.210259012 (6)06944413805507 (21)H18900830290
► Brief Introduction
Place the TOCO transducer on the patient‟s abdomen, which is flat and approximately 3 cm away from the fundus, e.g. slightly above the umbilicus on the left or on the right. The position should be different for different purposes: place the transducer close to the fetal buttocks for NST, and place it on fetal back in delivery. Wrap the abdomen with the belt over the transducer. Fix the transducer by pushing its buckle through the overlapping section of the belt. Make sure the belt fits the patient snugly but comfortably
Degree of protection against harmful ingress of water of the US transducer and TOCO transducer is IPX8. They can be continuously immersed in water to a depth of 1.1 meter for 24 hours and remain safe, but they are not allowed to be immersed in organic solvent, such as ethanol.

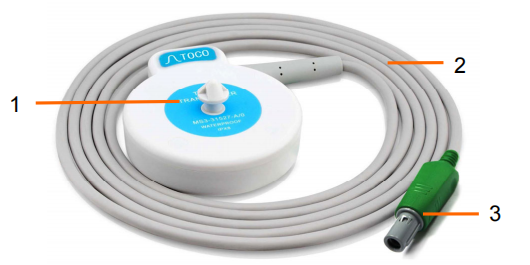

1. TOCOS Transducer Sensor (Blue Labeled)
2. Transducer Cable
3. Transducer Connector
► Testing TOCO Transducers
1. Switch on the monitor.
2. Connect the TOCO transducer to the fetal monitor.

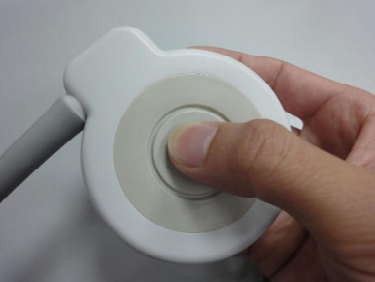

3. Gently press the center of the transducer.
4. Check that the value on the display shows this change in pressure
5. Lay the transducer face up on a hard, flat surface for a few seconds.
6. Press the AUTO ZERO key to zero the TOCO displays 10.

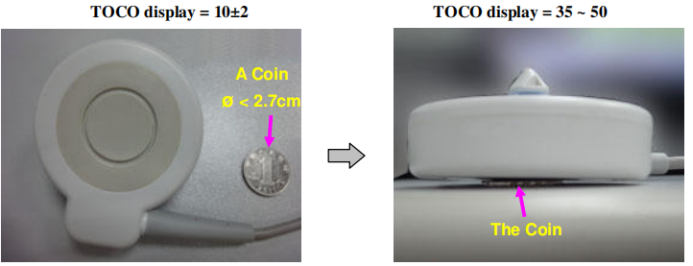

7. Find a flat thing, such as a coin, whose diameter is less than 2.7cm.
8. Turn the transducer over so that the transducer is resting on the coin. The TOCO numeric should read between 35 and 50.
If a TOCO transducer fails the test, repeat this test with another transducer. If the second one passes the test, defect of the first transducer is confirmed. Replace it with a good one.
► Specifications
| TOCO Range: | 0% ~ 100% |
| Non-linear Error: | < +10% |
| Resolution: | 1% |
| Zero Mode: | Automatic / Manual |
| Dielectric Strength | > 4000Vrms |
